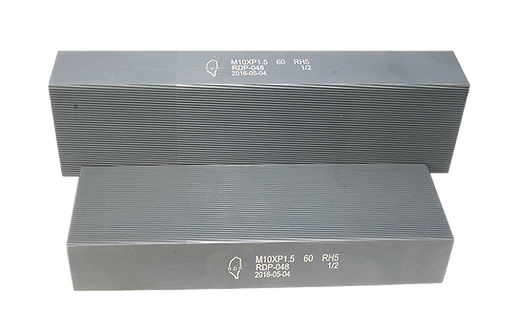

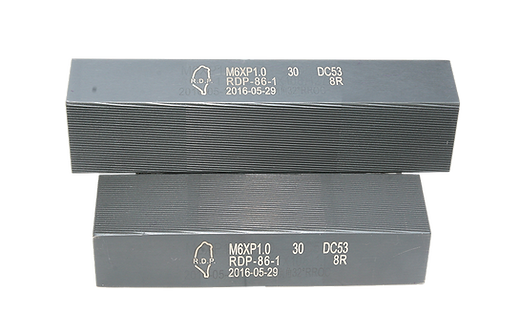

Machine Screw Thread Rolling Dies

According to the threads, the commonly used machine screw thread rolling die can be divided into：

  • Metric thread (M, MJ)
  • American thread (UNC, UNF, UNEF, UNR, UNS, UNJC, UNJF)
  • British Whitworth Thread (BSW, BSF)
  • British Association Thread (BA)
  • Trapezoidal thread (30 degree or 29 degree)
  • Bicycle Thread (BC)
  • Sewing Machine Thread (SM)
  • Above Machine screw dies with RROC, we have our own intellectual property rights patents.

Above Machine screw dies with RROC, we have our own intellectual property rights patents.

01

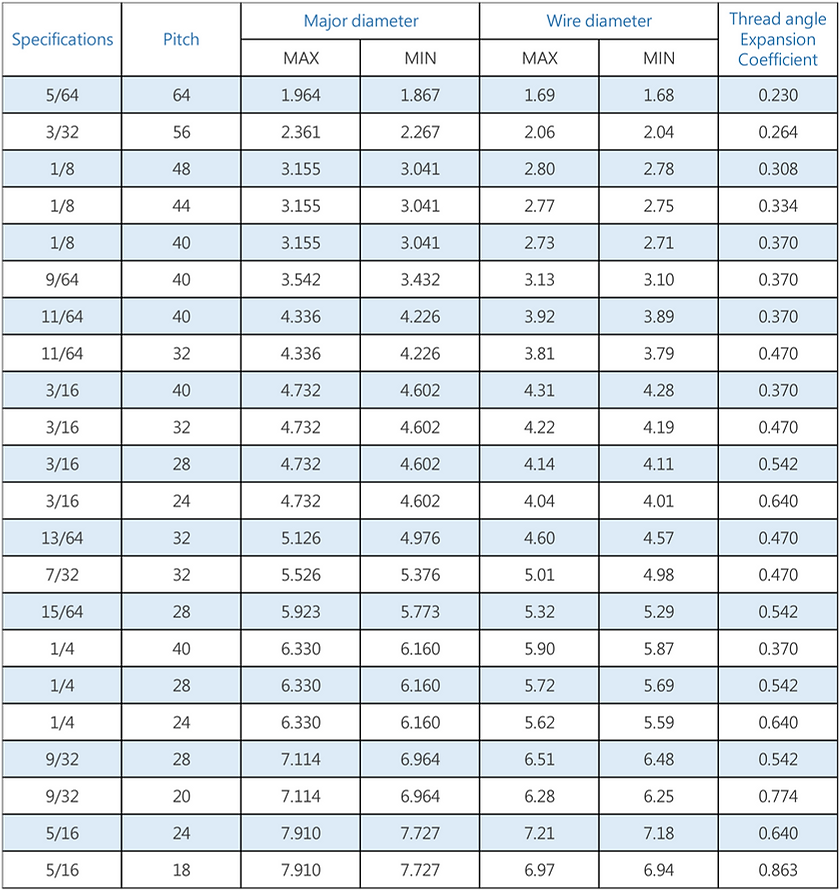

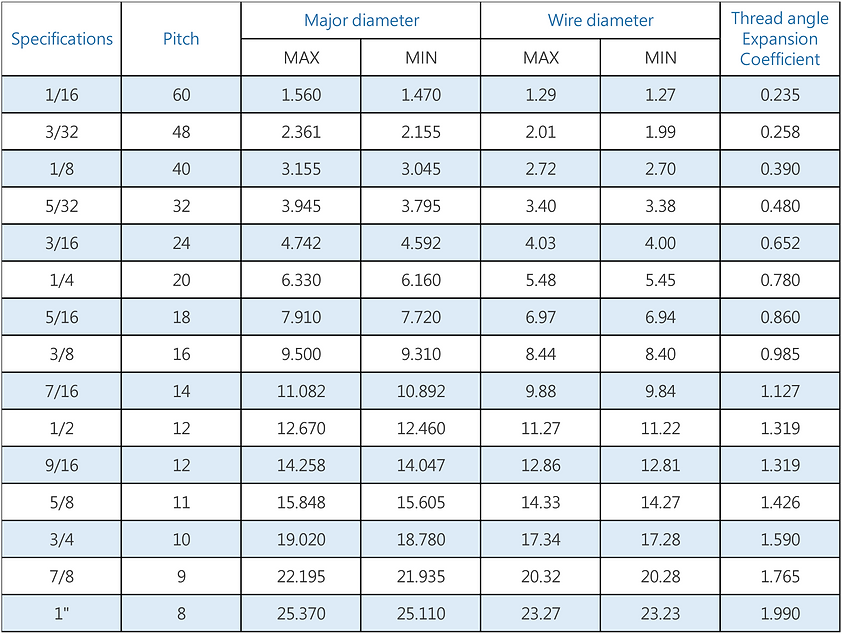

Wechsler's Thread Specification

02

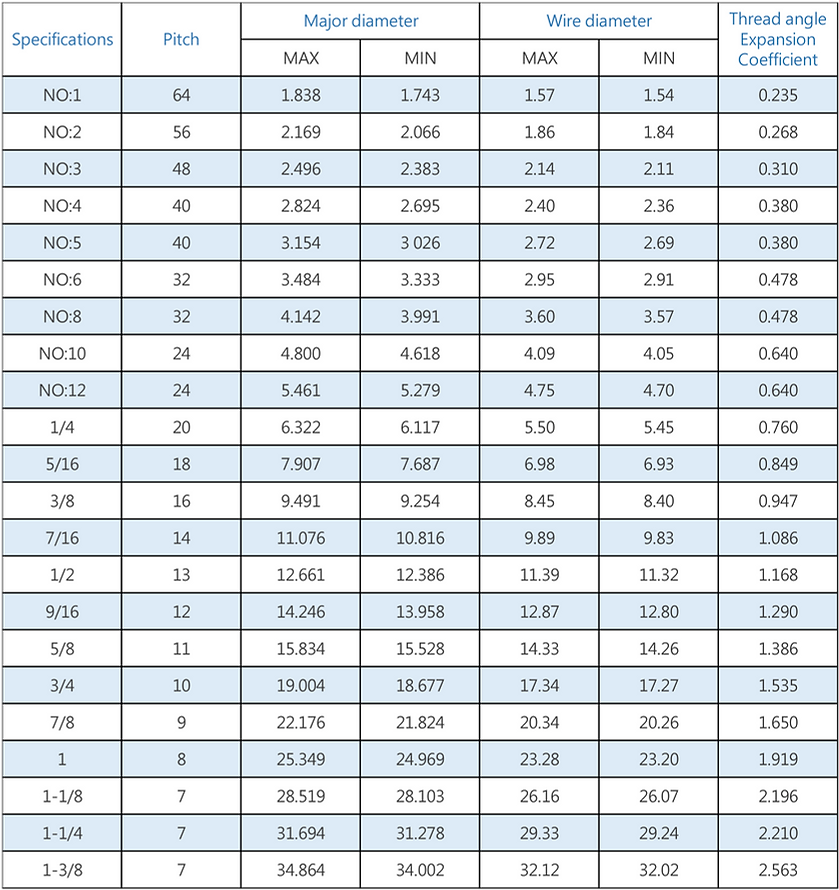

American Coarse Thread Specification

03

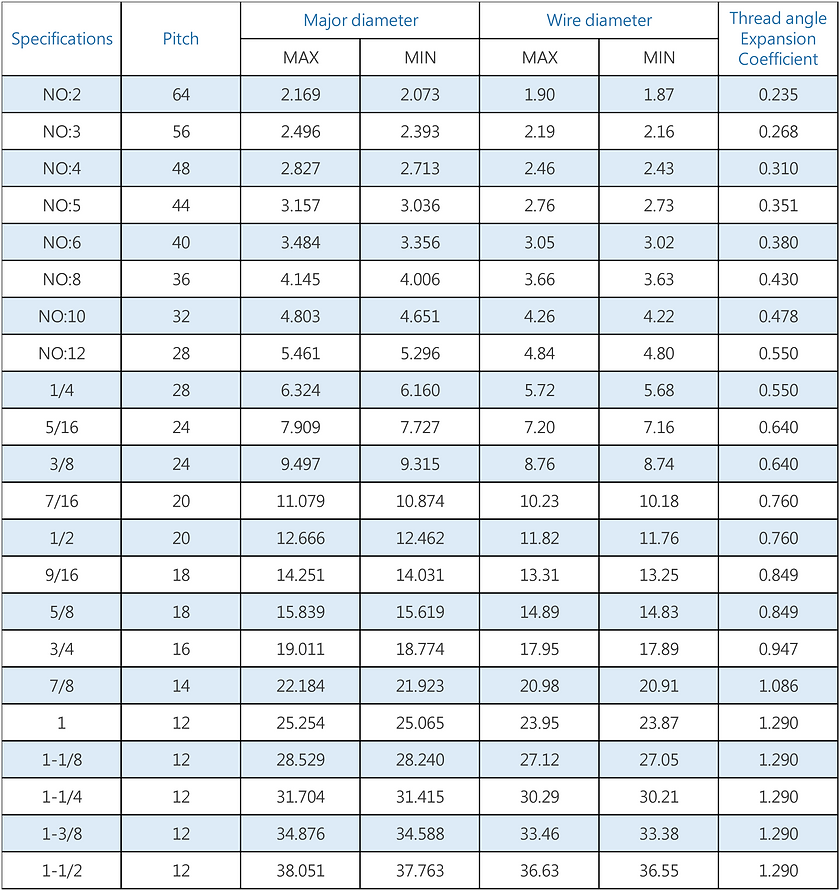

American Fine Thread Specification

04

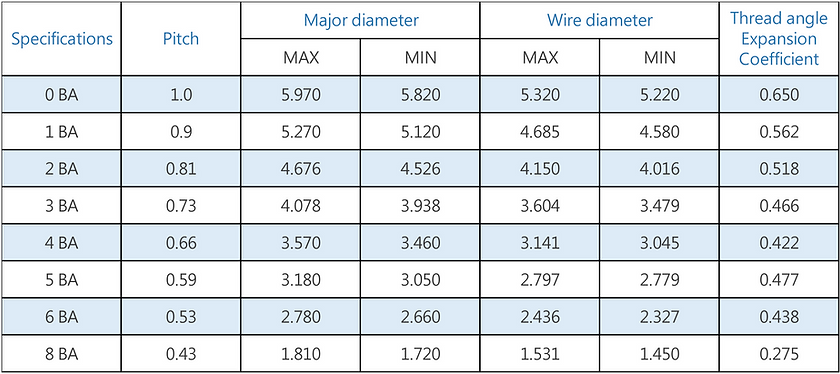

BA Specification

05

SM Needle Car Specification

06

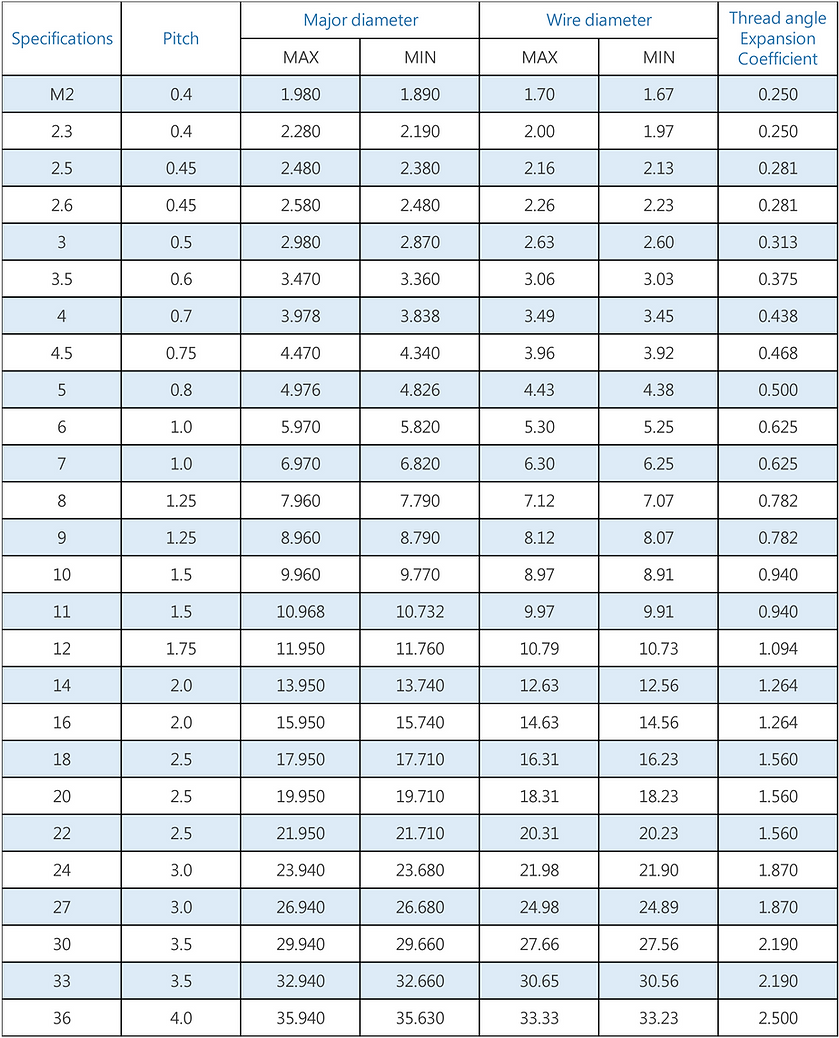

Specification of Millimeter Coarse Thread

07

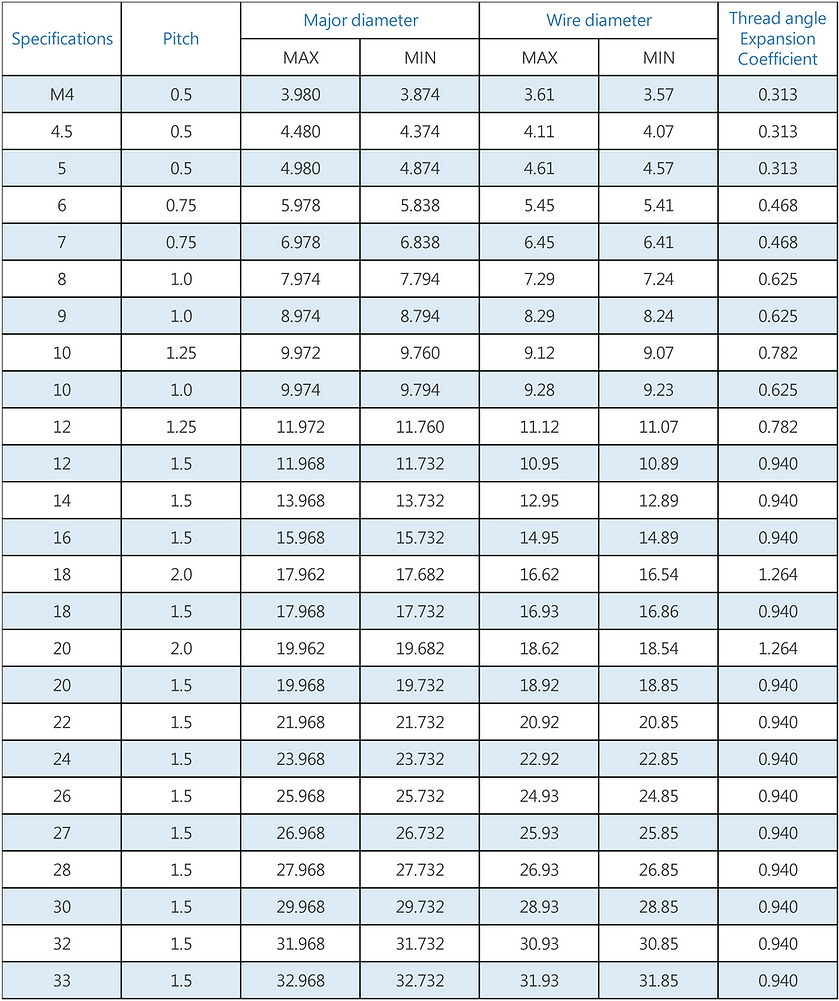

Millimeter Fine Thread Specification
